For recyclers who value stability over claims, and consistency over speed.

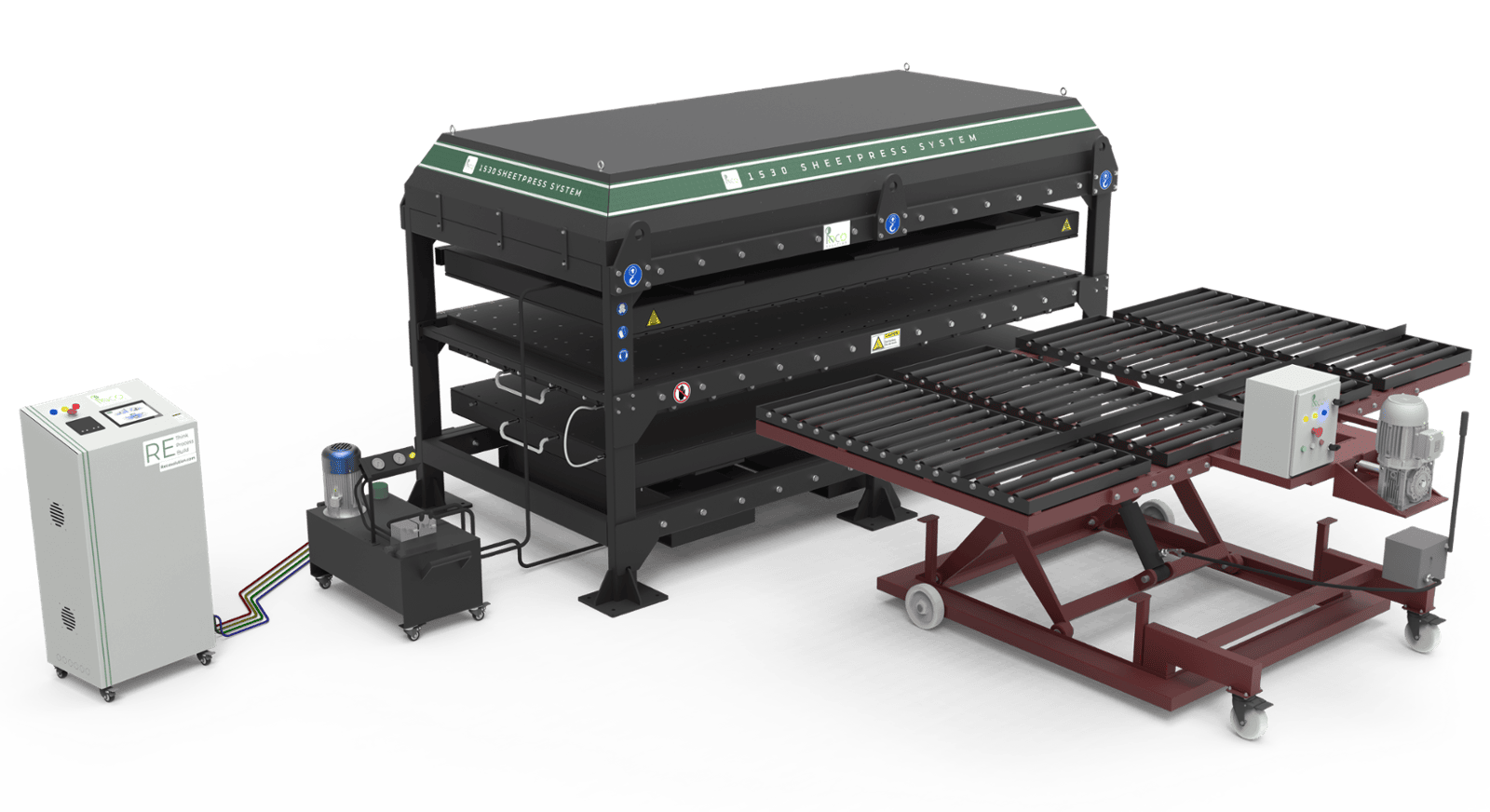

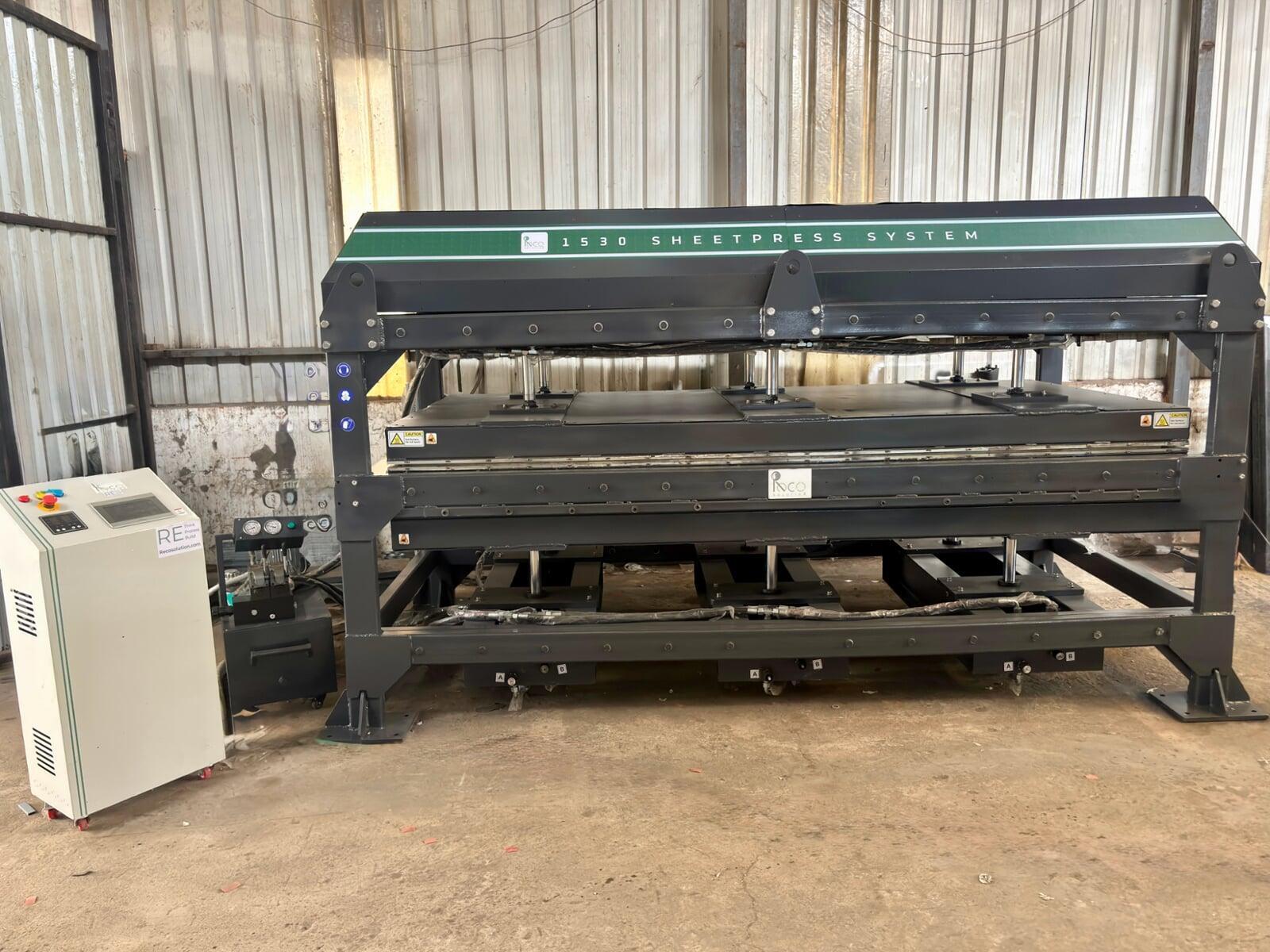

The 1530 Sheetpress
The system is designed as a combined hot and cold press, optimized for large-format recycled plastic sheets.
Designed for uniform pressure
Large platens require more than high hydraulic tonnage.
They require balanced pressure distribution across the entire pressing area.
The 1530 Sheetpress uses a multi-cylinder hydraulic arrangement designed to:
Maintain uniform pressure from edge to edge
Prevent localized over-compression or dead zones
Hold pressure steadily during long dwell cycles
This ensures consistent thickness, surface finish, and mechanical integrity across the full sheet size.
Controlled thermal penetration, not surface heating
Large-format recycled plastic sheets cannot rely on rapid surface heating.
Uneven thermal penetration leads to:
Internal stresses
Weak bonding within the sheet
Warping during or after cooling
The hot press is designed with:
High thermal mass heating plates
Zoned temperature control
Stable heat retention during dwell time
This allows heat to penetrate through the sheet thickness, not just across the surface, resulting in more uniform material fusion.
“Turn plastic waste into creations that shape sustainable spaces.”

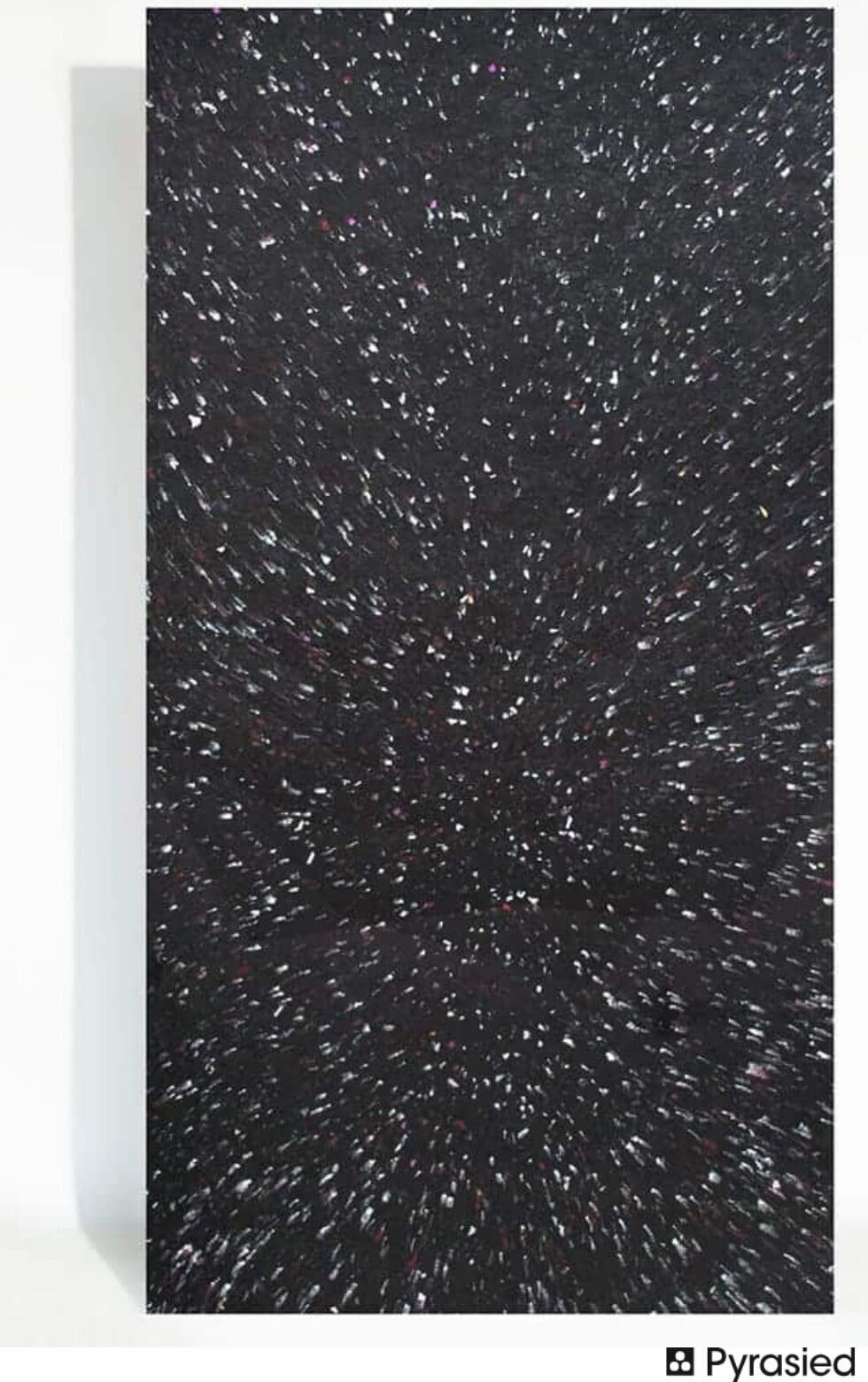

With the 1530 Sheetpress System, recycled plastic moves beyond experimentation and into dependable, large-format production. Designed to produce sheets up to 1300 × 2800 mm, this system enables recyclers to manufacture flat, consistent, and structurally reliable sheets at industrial scale. From construction panels and architectural elements to furniture, boards, and custom industrial applications, the 1530 Sheetpress supports products where dimensional stability, surface consistency, and repeatability truly matter. Whether you are building materials for infrastructure, interiors, or commercial use, the focus remains the same — a process that stays controlled, predictable, and dependable long after installation.
Children’s Furniture / Design Objects
Acoustic Panels / Interior Surface Features
Structured cooling that protects sheet geometry
Cooling is not treated as an afterthought.
The cold press stage is designed to:
Remove heat in a controlled, predictable manner
Reduce internal stress built during the heating phase
Stabilize sheet dimensions before demolding
This approach helps ensure that sheets remain flat not only at removal, but also hours and days later, during storage, cutting, or installation.
Heavy-duty structure for long, disciplined cycles
Large sheets often require longer press and hold times.
A structure that flexes under load introduces variability into every cycle.
The 1530 Sheetpress frame is:
Fabricated from heavy-duty structural sections
Designed to minimize deflection under full load
Built for continuous industrial operation
This structural rigidity ensures that the machine behaves the same at the end of a shift as it does at the beginning.
Controlled thermal penetration, not surface heating
Large-format recycled plastic sheets cannot rely on rapid surface heating.
Uneven thermal penetration leads to:
Internal stresses
Weak bonding within the sheet
Warping during or after cooling
The hot press is designed with:
High thermal mass heating plates
Zoned temperature control
Stable heat retention during dwell time
This allows heat to penetrate through the sheet thickness, not just across the surface, resulting in more uniform material fusion.
Key Features
The 1530 Sheetpress System supports large-format sheets up to 1500 × 3000 mm, using a combined hot and cold press design with uniform pressure distribution, stable long-hold hydraulics, recipe-based operation, and structured cooling to maintain sheet flatness. Built on a heavy-duty industrial frame, it is designed for repeatable production using HDPE, LDPE, PP, and mixed plastics with proper preparation.
- 1300 × 2800 mm sheet size
- Combined hot & cold press for controlled heating and stress-free cooling
Uniform pressure distribution across full platen area
- Stable hydraulic system designed for long, consistent hold cycles
Recipe-based operation for repeatable production across shifts
Rugged industrial design
- Structured cooling to maintain long-term sheet flatness
- Heavy-duty frame built for continuous industrial operation
- Suitable for HDPE, LDPE, PP, PS, ABS and mixed plastics (with proper preparation)
- Customizable molds to match production needs
- CE Certified
Business Benefits:
- Predictable production planning
- Lower operational risk
- Reduced dependency on skilled operators
- Faster return on investment
“Inside the Innovation: What Sets the 1530 Apart”
| Parameters | Details |
|---|---|
| Model | 1530 Sheetpress System |
| Sheet Size (Max.) | 1300 × 2800 mm |
| Sheet Thickness | 4 – 25 mm (tested up to 60 mm) |
| Total Pressing Force | ~100 Kg/cm² |
| Material Compatibility | LDPE, HDPE, PP, PS & other thermoplastics |
| Machine Dimensions | ~3.1 m × 1.6 m × 1.8 m |
| Weight | ~5500 kg |
| Operation | Automatic (Hydraulic + Electrical controls) |
| Heating System | Advanced mineral strip heaters (easy slide-in replacement) |
| Maintenance | Regular lubrication + periodic checks of heaters, hydraulics, and electrics |
| Control | HMI PLC Controlled With Data Record and Real Time Monitoring |

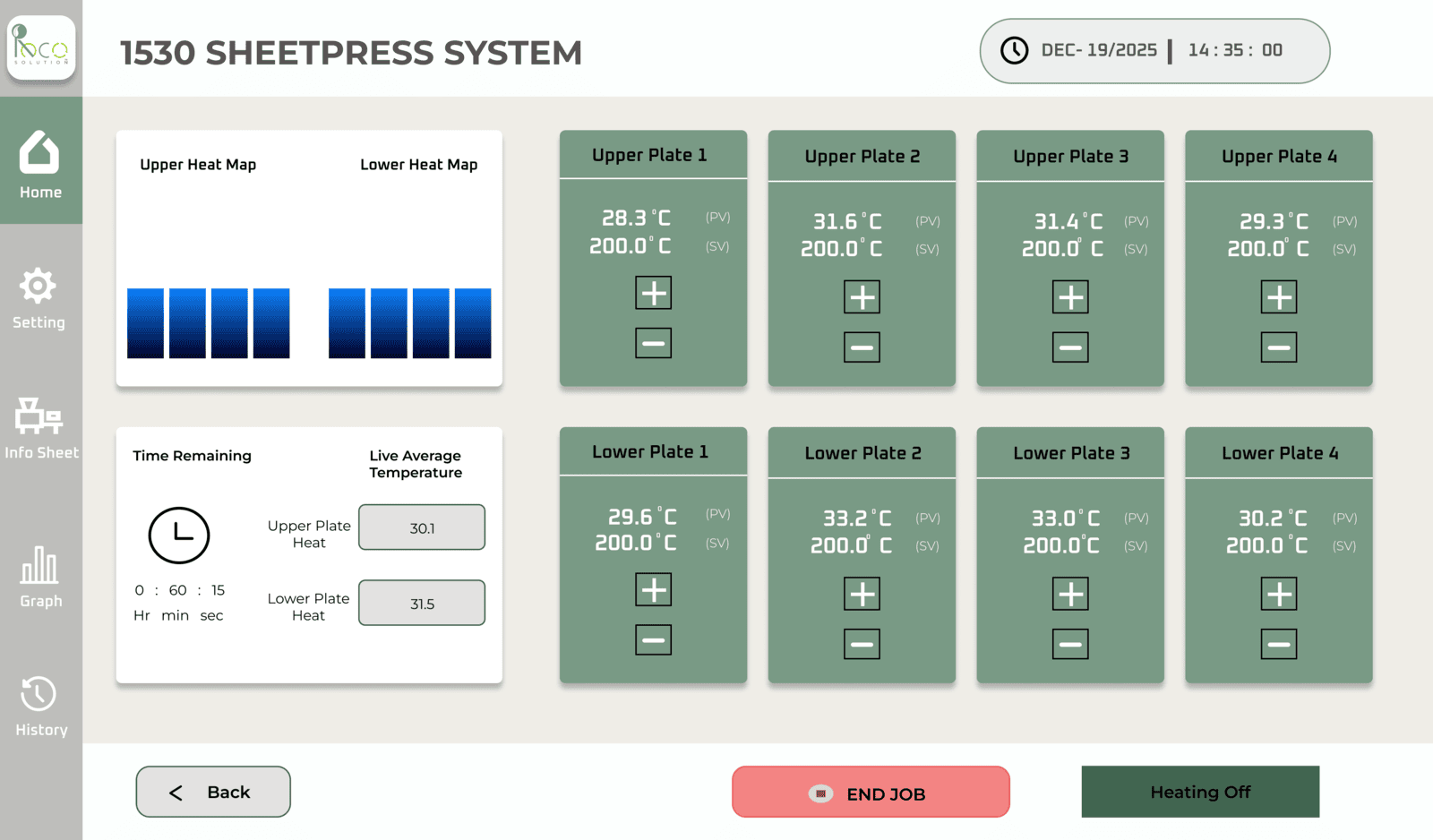

Advanced Temperature Control for Consistent Sheet Quality
Smart multi-zone heating control ensures uniform plastic melting and reliable sheet production.
Pick the Variant That Fuels Your Growth
"Push the Limits, Press the Future"
It’s about experiencing the power of speed, precision, and performance. Each variant is designed to deliver a new level of efficiency, giving you the thrill of production that feels unstoppable. Choose your pace, own your momentum.
| Varient | Melting Capacity | Hot+Cold Cycle | Power Requirement |
| 64-1530 HPCP | 35 kg raw material → 12 mm sheet in 20 min | ~1 hr | 64 kW (3 Phase, 380/415V) |
✅ Multiple sheets can be stacked in cold press for efficiency.
Sheet Production & Profit Estimator
Enter your production assumptions to generate an estimated report. Share your details in the next step to receive the full estimate.
These are estimated values for illustration only. Actual production, cycle time, cost, and profitability depend on material blend, operator efficiency, ambient conditions, reject rate, and process settings.
Testimonials
— Ali K., Dubai, UAE
(Eco Furniture Manufacturer)
— Carlos M., Lisbon, Portugal
(Recycled Plastic Products Manufacturer)
"We were nervous about ordering a heavy machine from overseas, but RecoSolution made the whole process smooth. From sea cargo to doorstep delivery, everything was handled. The machine runs flawlessly."
— Anna M., Germany
— Fatima A., Social Enterprise, UAE
— James L., Plastics Recycler, UK
More than a Machine
“We don’t just sell machines — we deliver recycling solutions that are profitable, scalable, and sustainable.”
Specialized Expertise
Focused exclusively on plastic recycling machinery, with deep R&D experience.
Hand Holding Support
From design, manufacturing, and testing to installation, training, and after-sales service.
Custom-Built Solutions
Ability to adapt machines to client requirements (sheet size, mold design, automation level).
Proven ROI
Machines designed to help customers recover investment quickly while creating new revenue streams.
